Invar 42 _ Alloy 42 _ 1.3917

Invar 42 _ Alloy 42 _ 1.3917 semi-finished products and CNC-manufactured components according to drawings.

Your partner for special components from prototype to series.

We supply Invar 42 _ 1.3917 raw material, semi-finished products and offer CNC machining from small quantities to series production.

Invar 42 is also known as Nilo alloy 42 and has the material number 1.3917 and is subject to the American standard ASTM F30. Invar 42 is a nickel-iron alloy with 42% nickel (remainder iron). The advantage of Alloy 42 is that it has a very low expansion at temperatures below 300°C, which is only one tenth of that of conventional steel. Invar 42 is therefore primarily used in areas where expansion when heat is introduced is undesirable. Alloy 42 is often used in laser technology, high-precision technology, aerospace and measuring devices.

By combining Invar 42 with a highly expanding material, a thermomechanical control switch can also be realized through the different movements.

Invar 42 is a tough material but can be milled and turned with the right tools and experience. We would be happy to take over the CNC processing of Alloy 42 (1.3917) for your individual components according to your drawing.

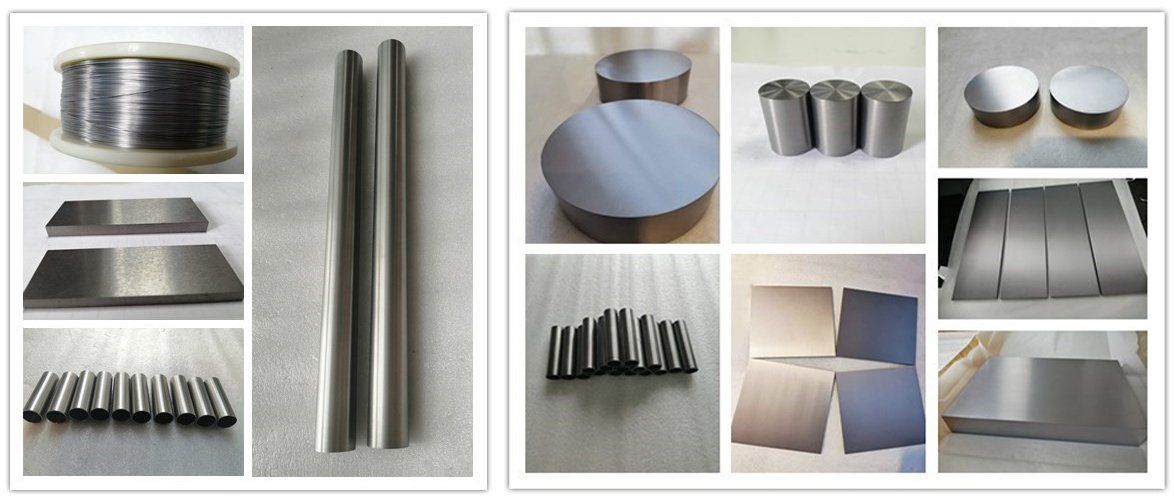

Our common stock products are Wire, Rod, Rods, Bars, Square, Plate, Sheet and Foil.

Other forms and products made of iron-nickel alloys are available upon request.

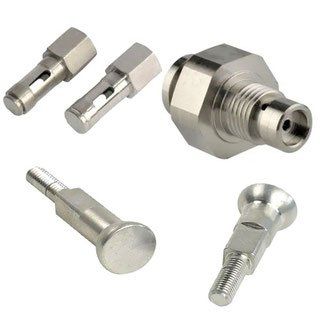

Special components processing from Invar 42 (1.3917) according to drawing.

We supply you with semi-finished products made of Invar 42 _ Alloy 42 for your in-house production, but we also take on the CNC production of your components. Invar 42 is a tough material and the machining of fine contours and compliance with tolerance accuracy requires a corresponding know-how in the machining of iron-nickel alloys.

With our many years of experience in machining Invar 42 / 1.3917, we are happy to support you.

Name

Invar 42, Nilo alloy 42, 1.3912

composition

42NiFe

colour

Silver Gray Metallic

Thermal conductivity (20°C)

12,5 W/m.k

E-Module

145 MPa

Specific heat

0,51 J/g-°C

coefficient of expansion

5,4 µm/m °C (20 – 300°C)

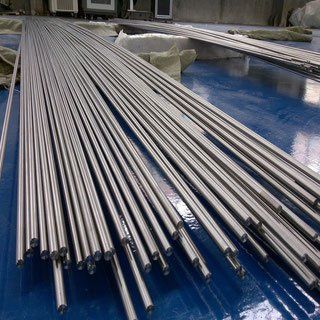

In addition to processing Invar 42 / 1.3917 / Nilo 42, we also offer semi-finished products such as rods and rods from stock. Our rods are usually installed directly as semi-finished products or further processed by machining.

Alloy 42 bar and bar are available in a variety of dimensions and surface finishes. We also manufacture special dimensions in small quantities according to customer requirements and ship them worldwide.

For questions regarding stock dimensions please contact us.



Name

Invar 42, Nilo alloy 42, 1.3912

composition

42NiFe

colour

Silver Gray Metallic

Thermal conductivity (20°C)

12,5 W/m.k

E-Module

145 MPa

Specific heat

0,51 J/g-°C

coefficient of expansion

5,4 µm/m °C (20 – 300°C)

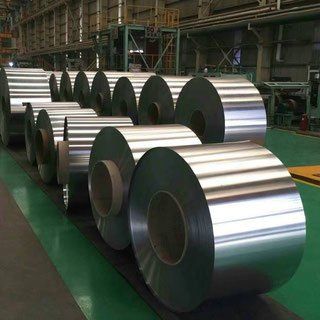

In addition to processing Invar / Alloy 42, we also offer semi-finished products such as plates and foils. Foils are usually installed by our customers without any further production step, plates are often further machined.

Invar 42 _ 1.3917 sheets and foils are available in different thicknesses, widths and lengths. We manufacture special dimensions with tolerances in the micrometer range according to customer requirements and ship them worldwide.

If you have any questions about the dimensions in stock and the possibilities of production, please contact us.

Name

Invar 42, Nilo alloy 42, 1.3912

composition

42NiFe

colour

Silver Gray Metallic

Thermal conductivity (20°C)

12,5 W/m.k

E-Module

145 MPa

Specific heat

0,51 J/g-°C

coefficient of expansion

5,4 µm/m °C (20 – 300°C)

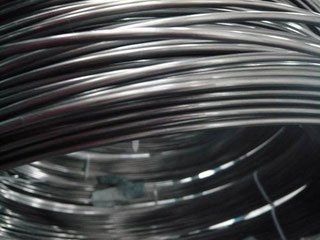

In addition to processing Invar 42 / Alloy 42, we also offer semi-finished products such as Invar wire. Our customers mostly use the wire in its raw state, but it is also frequently processed further by bending or rolling. Invar wires are available from stock in various diameters. We manufacture special dimensions with special tolerances according to your wishes, even in small quantities.

If you have any questions about the dimensions in stock and the possibilities of production, please contact us.

Obtain your Invar 42 / 1.3917 wires from experts and let us advise you.

Send us an inquiry and we will get in touch with you as soon as possible.
